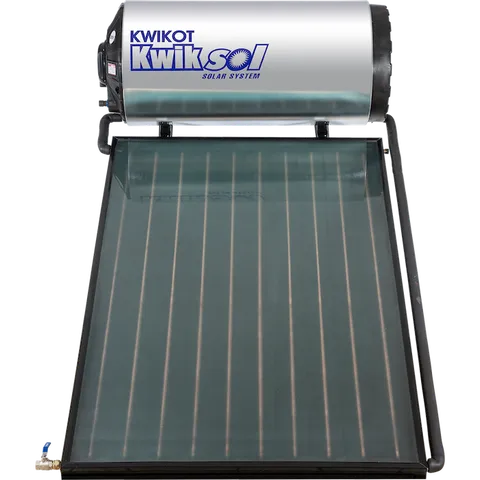

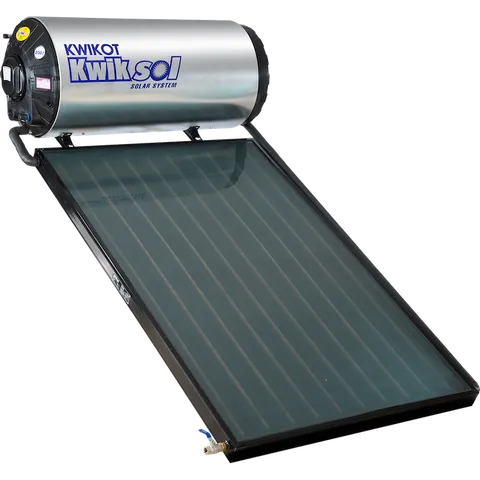

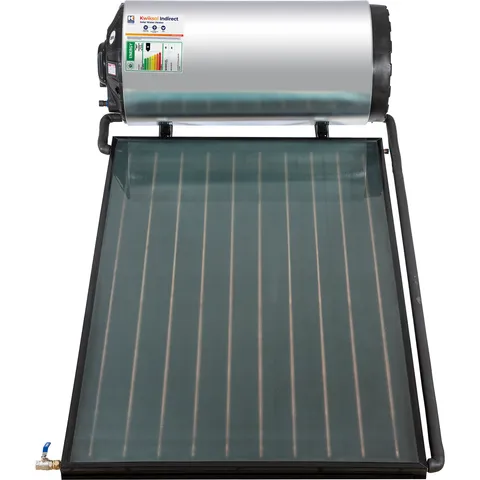

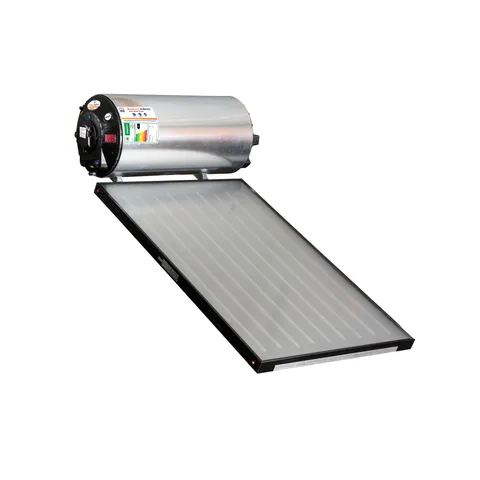

Kwiksol Indirect System 200lt - Frost prone with Flat Plate Panel

SKU: SOL-200-IC

Used in frost locations i.e. inland areas, where the ambient temperature falls below 5°C Used with one solar collector panel. Transfers heat via propylene glycol. Electrical backup.

  • The Kwikot Kwiksol Solar Water Heater 400kPa can be installed as a close coupled system or split system.
  • The inner cylinder is manufactured from 2mm steel and thermo fused porcelain enamelled for cylinder longevity and hygiene.
  • Polyurethane insulation between the inner cylinder and outer casement reduces energy and heat loss.
  • 2x aluminium sacrificial anodes are fitted for corrosion protection.
  • The solar water heater is designed for domestic hot water application in conjunction with one or more solar collector panels or solar vacuum tubes.
  • The two extra fluid connections required for connecting solar collector panels or solar vacuum tubes, and the element ensures that the solar water heater can be used as a conventional electric water heater and as a solar water heater.
  • The thermostat will automatically switch on the element when water is not at set temperature.
  • This will occur on cloudy days and at night when the water temperature drops in the solar water heater or when hot water is drawn off and cold water enters the solar water heater.

Key Specification

Operating Pressure (kPa) Up to 400
Water Connection 3/4''
Element Rating (kW) 2
Solar Type Solar Thermal Water Heating - High Pressure
Solar Connections (BSP Male) 3/4''
Product Type Solar Thermal Water Heating
Capacity (Litres) 200

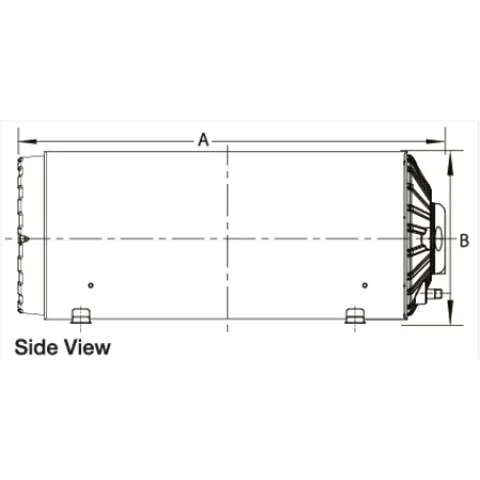

Height (mm) 596
Width (mm) 1346
Number of Panels/Size 1 x 2.5m�
Mass Empty (kg) 98
