Features

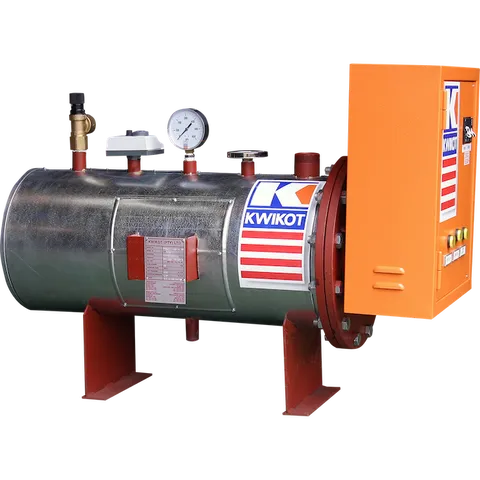

- Industrial tanks designed to supply large quantities of hot water for use in Hotels, Hospitals, Hostels and Ablutions etc. Supply of chiller tanks for airconditioning units.
- Vessels are manufactured from either mild steel or stainless steel on request.
- Mild steel vessels are coated with Carboguard 545 or Glass Flake epoxy on request.
- Vessels are available in vertical or horizontal configuration for floor installation.
- lncalloy elements fitted as standard. Element loading is designed for 6 hour recovery from cold to 60 °C.
- Insulation consists of 50 mm IW24 fibreglass wool cladded with 0,6mm galvanised sheet metal or stainless steel cladding on request.
- All vessels are fitted with over-pressure and overtemperature safety valves.
- Vessels are fitted with control and overtemperature thermostats.
- Working pressure up to 400kPa (600kPa available on request).
- Pre-wired, vessel mounted control panels for loadings from 6kW to 84kW (Not limited. Can be customised to specific need).
- Additional electrical accessories including ammeter; volt meter; time and by-pass switches; stepped control and low water cut outs are available on request.
- Flanged connections available on request.
Key Specification
Product Type |
Industrial Bulk Hot Water Systems |
Standard Electrical Loading (kW) |
6 kW |
