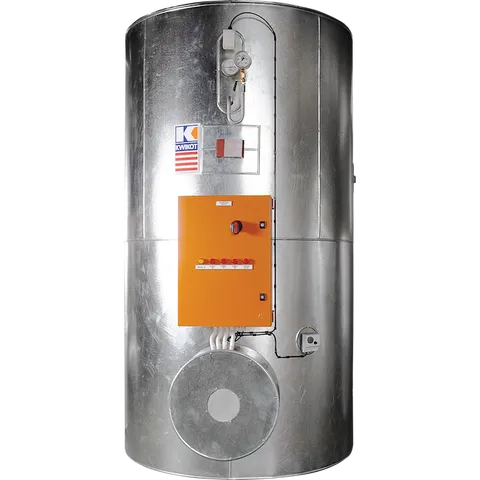

Kwikot Industrial Water Heater 500L
SKU: KS100Supply of large quantities of hot water for use in industries, hotels, hospitals and hostels. Chiller tanks for large industrial air conditioning units. 500 - 3000L vertical tanks kept in stock or can be manufactured to customer specifications or requirements. Manufacturing can be done according to customer specifications and requirements. read more ? read less ?
Features
- Industrial tanks designed to supply large quantities of hot water for use in Hotels, Hospitals, Hostels and Ablutions etc. Supply of chiller tanks for airconditioning units.
- Vessels are manufactured from either mild steel or stainless steel on request.
- Mild steel vessels are coated with Carboguard 545 or Glass Flake epoxy on request.
- Vessels are available in vertical or horizontal configuration for floor installation.
- lncalloy elements fitted as standard. Element loading is designed for 6 hour recovery from cold to 60 °C.
- Insulation consists of 50 mm IW24 fibreglass wool cladded with 0,6mm galvanised sheet metal or stainless steel cladding on request. All vessels are fitted with over-pressure and overtemperature safety valves.
- Vessels are fitted with control and overtemperature thermostats.
- Working pressure up to 400kPa (600kPa available on request).
- Pre-wired, vessel mounted control panels for loadings from 6kW to 84kW (Not limited. Can be customised to specific need).
- Additional electrical accessories including ammeter; volt meter; time and by-pass switches; stepped control and low water cut outs are available on request.
- Flanged connections available on request.
Key Specification
| Diameter (mm) | 710 |
|---|---|
| Gross Weight (kg) | 125 |
| Height (mm) | 1864 (vertical size) |
| Standard Electrical Loading (kW) | 6 kW |
| Capacity (Litres) | 500 |
| Product Type | Industrial Bulk Hot Water Systems |
